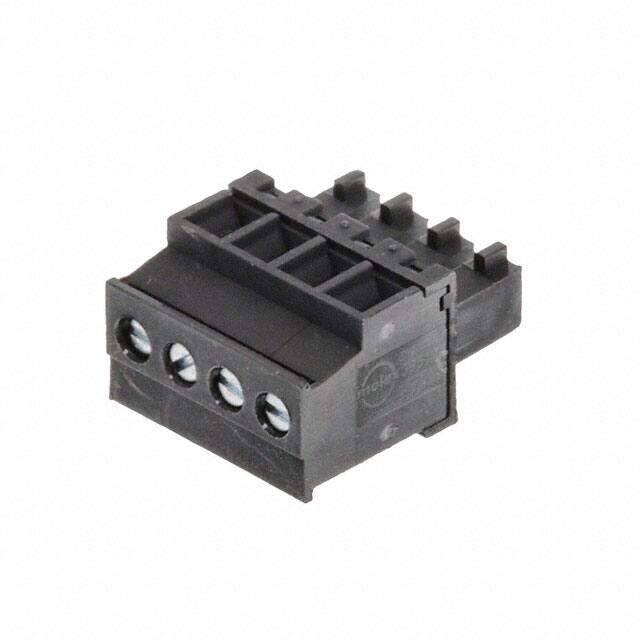

0395133004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 4POS 3.81MM
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.4608
≥1 USD $1.4608
≥10 USD $1.10528
≥100 USD $0.674194
≥500 USD $0.606778
≥1000 USD $0.573065
≥3000 USD $0.561836
Inventory: 1073
Minimum: 1
-
+
Technical Details
Technical
Torque - Screw 0.23 Nm (2.0 Lb-In)
Plug Wire Entry 90°
Wire Strip Length 6.5mm
Current - UL 8A
Wire Gauge or Range - AWG 16-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screw - Rising Cage Clamp
Insulation Height 0.750 19.05mm
Pitch 0.150 3.81mm
Color Black
Number of Positions 4
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Eurostyle ESE 39513
Packaging Bulk
Operating Temperature -40°C~115°C
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Housing Material Polyamide (PA66), Nylon 6/6
Mounting Type Free Hanging (In-Line)
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
