0395033004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

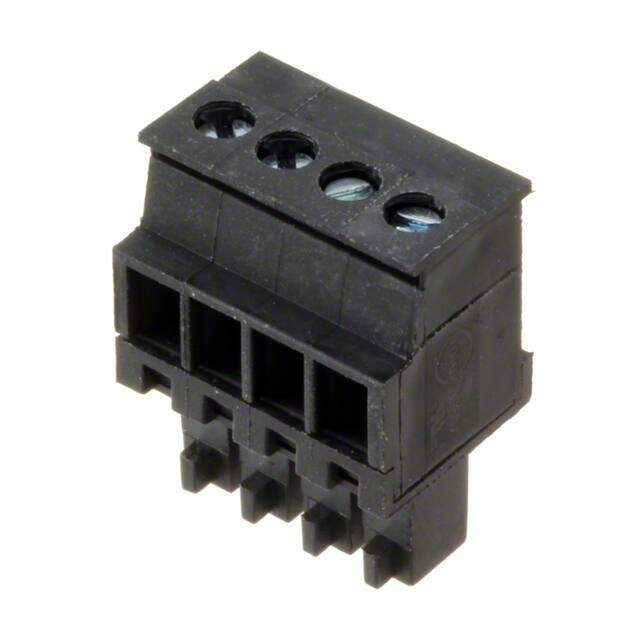

TERM BLOCK PLUG 4POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.4608
≥1 USD $1.4608
≥10 USD $1.10528
≥100 USD $0.786562
≥500 USD $0.651728
≥1000 USD $0.573065
≥3000 USD $0.561836
Inventory: 1071
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series Eurostyle ESE 39503
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 4
Color Black
Pitch 0.138 3.50mm
Insulation Height 0.740 18.80mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 16-30 AWG
Current - UL 8A
Torque - Screw 0.23 Nm (2.0 Lb-In)
Plug Wire Entry 90°
Wire Strip Length 6.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
