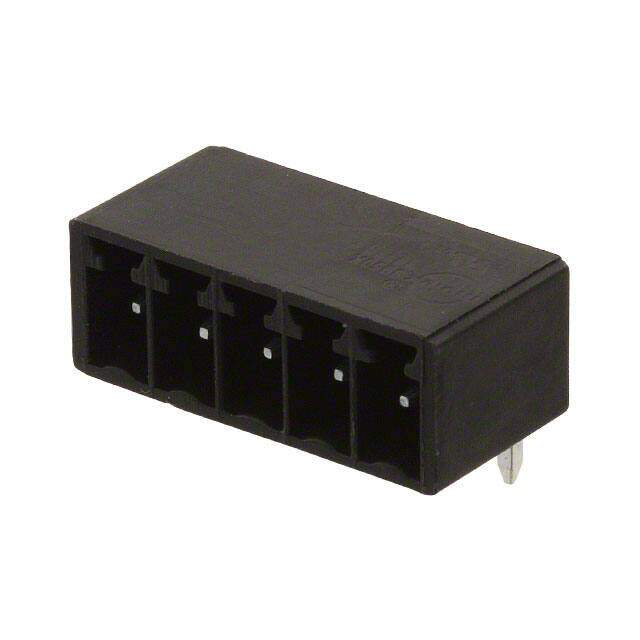

0395021005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 5POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.336692
≥1 USD $1.336692
≥10 USD $1.261031
≥100 USD $1.189653
≥500 USD $1.12231
≥1000 USD $1.058786
Inventory: 5191
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series Eurostyle ESE 39502
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Gender Male
Additional Feature POLARIZED, SHROUDED
Pitch 0.138 3.50mm
Orientation Horizontal
Depth 9.2mm
Insulation Height 0.270 6.86mm
Current Rating 8A
Termination Style Solder
Contact Resistance 8mOhm
Voltage 300V
Contact Tail Length 0.140 3.56mm
Number of Circuits 4
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 5
Header Orientation 90°, Right Angle
Number of Positions Per Level 5
Dimensions
Length 18.89mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
