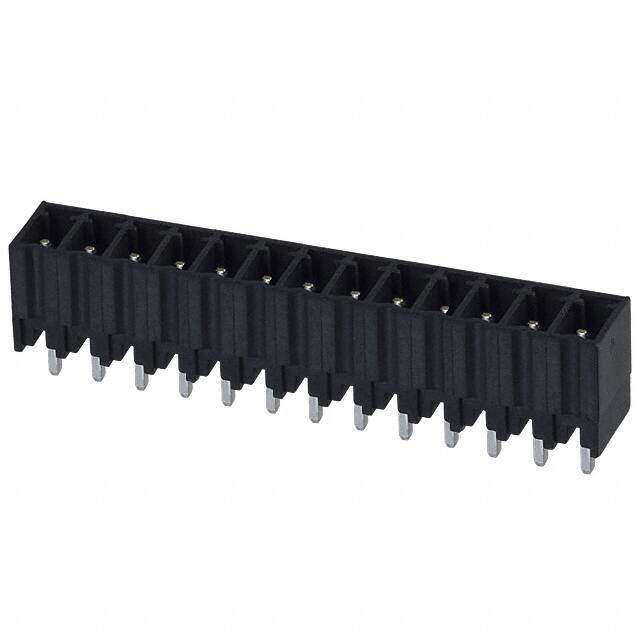

0393530013
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 13POS VERT 3.5MM
PDF
/
Inventory: 5769
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mounting Type Through Hole
Housing Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature 140°C
Packaging Bulk
Series Eurostyle 39353
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 13
Color Black
Pitch 0.138 3.50mm
Insulation Height 0.360 9.14mm
Termination Style Solder
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 10A
Header Orientation Vertical
Compliance
RoHS Status Non-RoHS Compliant
