0393530008
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

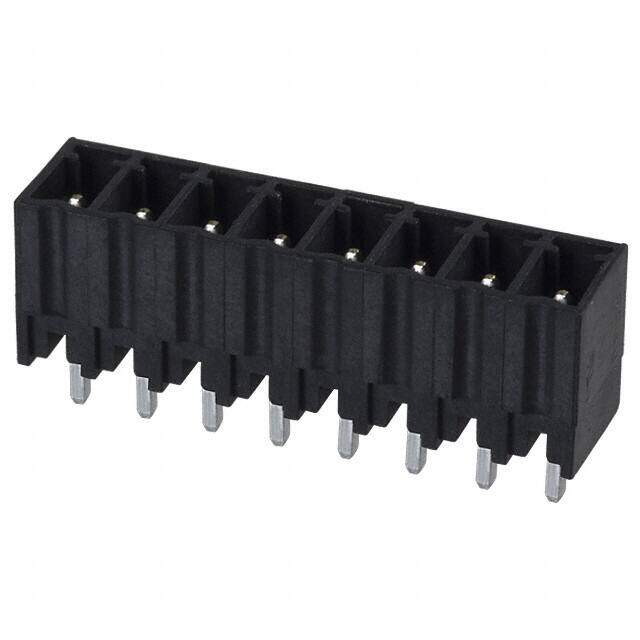

TERM BLOCK HDR 8POS VERT 3.5MM
PDF
/
Inventory: 9713
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Header Orientation Vertical
Current - UL 10A
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Termination Style Solder
Insulation Height 0.360 9.14mm
Pitch 0.138 3.50mm
Color Black
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Eurostyle 39353
Packaging Bulk
Operating Temperature 140°C
Physical
Housing Material Polyamide (PA46), Nylon 4/6
Mounting Type Through Hole
Contact Material Brass
Alternative Model
