14311016402000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

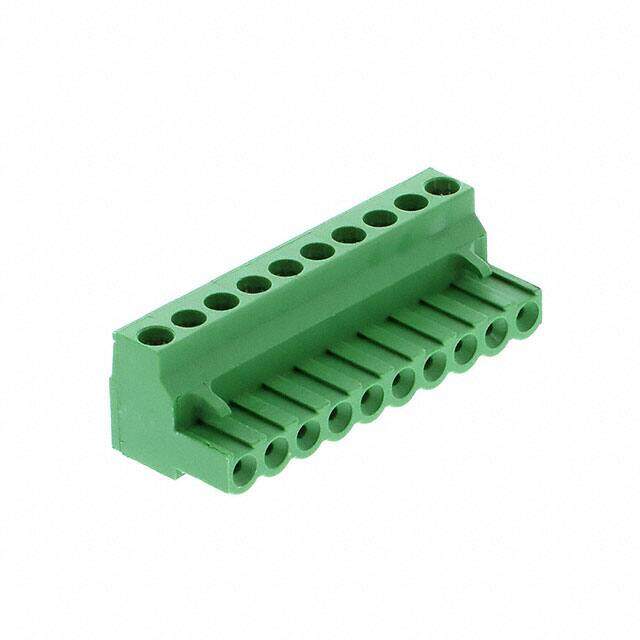

HARTING 14311016402000TERMINAL BLOCK, PLUGGABLE, 10WAY, 30-12AWG, HAR-FLEXICON
PDF
/
Inventory: 4261
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon, Polyphthalamide (PPA)
Technical
Operating Temperature -40°C~110°C
Packaging Bulk
Series har-flexicon?
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 300V
Pitch 0.197 5.00mm
Orientation Horizontal
Insulation Height 0.610 15.49mm
Current Rating 15A
Termination Style Screw
Voltage 600V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 30 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.05-2.5mm2
Wire Strip Length 6-7.5mm
Number of Positions Per Level 10
Screw Size M3
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
