14310517102000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

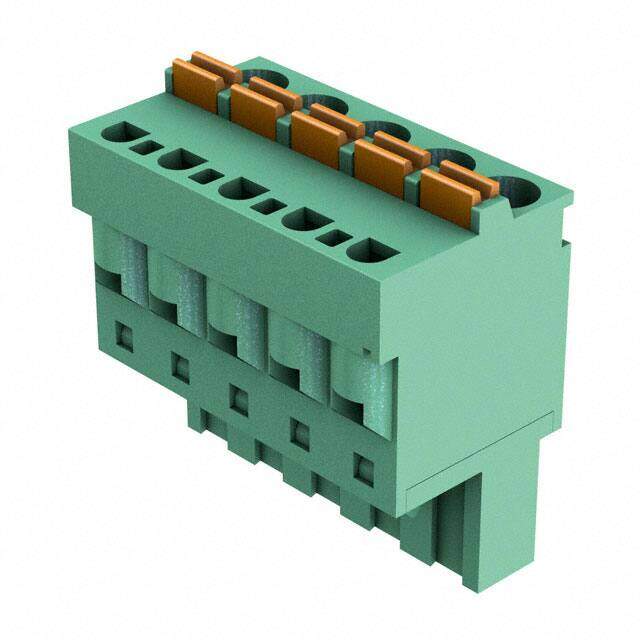

HARTING 14310517102000TERMINAL BLOCK, PLUGGABLE, 5WAY, 30-12AWG, HAR-FLEXICON
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.522544
≥1 USD $3.522544
≥10 USD $3.323152
≥100 USD $3.135047
≥500 USD $2.95759
≥1000 USD $2.790189
Inventory: 3734
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon, Polyphthalamide (PPA)
Technical
Operating Temperature -40°C~110°C
Packaging Bulk
Series har-flexicon?
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 5
Max Operating Temperature 110°C
Min Operating Temperature -40°C
Color Green
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Horizontal
Insulation Height 0.587 14.91mm
Current Rating 12A
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Contacts 5
Voltage 600V
Number of Levels 1
Current 12A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 30 AWG
Number of Poles 5
Contact Mating Finish Tin
Voltage - UL 600V
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 12A
Positions Per Level 5
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 5
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
