14310516102000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

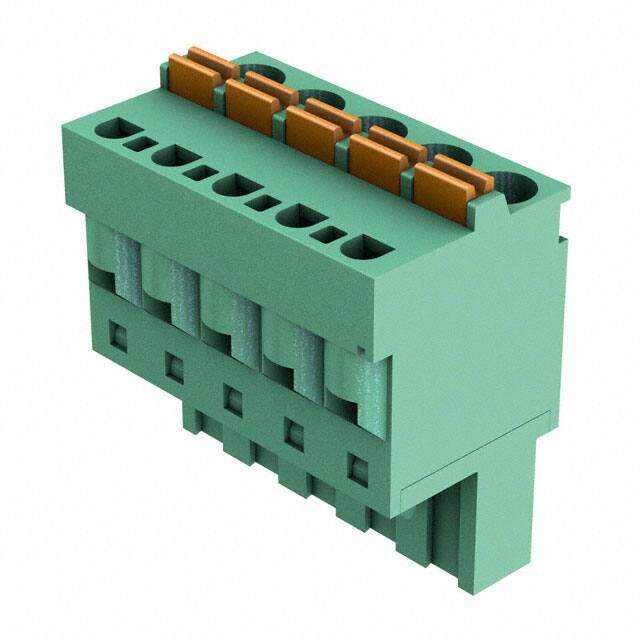

HARTING 14310516102000TERMINAL BLOCK, PLUGGABLE, 5WAY, 30-12AWG, HAR-FLEXICON
PDF
/
Buying Options
Total Price: USD $6.57
Unit Price: USD $6.571819
≥1 USD $6.571819
≥10 USD $6.199828
≥100 USD $5.848897
≥500 USD $5.51782
≥1000 USD $5.205492
Inventory: 4227
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 5
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Positions Per Level 5
Current - UL 12A
Wire Gauge or Range - AWG 12-30 AWG
Voltage - UL 600V
Contact Mating Finish Tin
Number of Poles 5
Wire/Cable Gauge 30 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Voltage 600V
Number of Contacts 5
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 12A
Insulation Height 0.587 14.91mm
Orientation Horizontal
Pitch 0.197 5.00mm
Voltage - Rated 300V
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 110°C
Number of Positions 5
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series har-flexicon?
Packaging Bulk
Operating Temperature -40°C~110°C
Physical
Housing Material Polyamide (PA), Nylon, Polyphthalamide (PPA)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
