14310214102000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

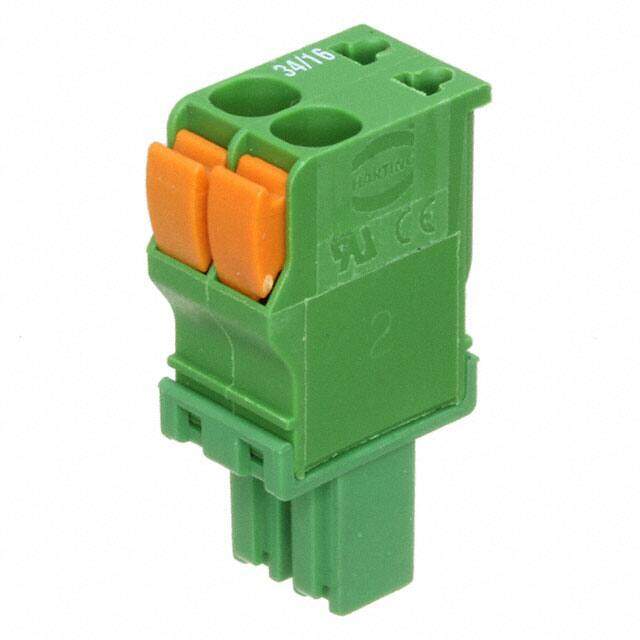

HARTING 14310214102000TERMINAL BLOCK, PLUGGABLE, 2WAY, 30-14AWG, HAR-FLEXICON
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.156
≥1 USD $2.156
≥10 USD $1.87968
≥100 USD $1.519848
≥500 USD $1.39986
≥1000 USD $1.19988
≥3000 USD $1.063894
Inventory: 130
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon, Polyphthalamide (PPA)
Technical
Operating Temperature -40°C~110°C
Packaging Bulk
Series har-flexicon?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 150V
Pitch 0.138 3.50mm
Orientation Horizontal
Insulation Height 0.459 11.66mm
Current Rating 11A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Number of Levels 1
Current 11A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Wire/Cable Gauge 30 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-30 AWG
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 9-10mm
Number of Positions Per Level 2
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
