14111213002000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

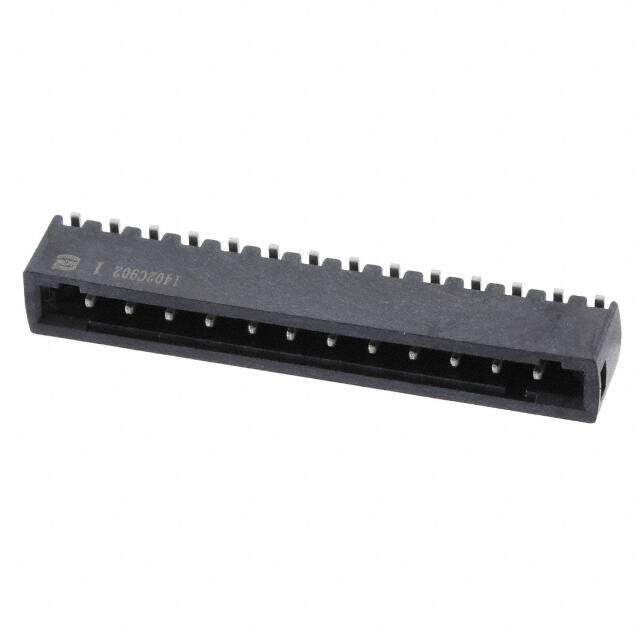

HARTING 14111213002000HEADER, 12WAY, 1ROW, 2.54MM, HAR-FLEXICON
PDF
/
Buying Options
Total Price: USD $3.31
Unit Price: USD $3.3088
≥1 USD $3.3088
≥10 USD $3.00256
≥100 USD $2.645456
Inventory: 1123
Minimum: 1
-
+
Technical Details
Technical
Packaging Cut Tape (CT)
Series har-flexicon?
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 160V
HTS Code 8536.69.40.30
Subcategory Headers and Edge Type Connectors
Pitch 0.100 2.54mm
Total Number of Contacts 12
Orientation Horizontal
Depth 5mm
Insulation Height 0.197 5.00mm
Current Rating 7.3A
Number of Conductors ONE
Reference Standard UL
Termination Style Solder
Reliability COMMERCIAL
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Contact Resistance 20mOhm
Voltage 160V
Polarization Key POLARIZED HOUSING
Number of Levels 1
Current 6A
Operating Temperature -40°C~125°C
Contact Pattern RECTANGULAR
Insertion Force-Max 4.8928 N
Contact Mating Finish Tin
Header Orientation 90°, Right Angle
Number of Positions Per Level 12
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Material Glass fibre, Polymer
Mounting Type Surface Mount
Mount Panel, Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
Dimensions
Length 35.79mm
Width 7mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
