14111113002000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

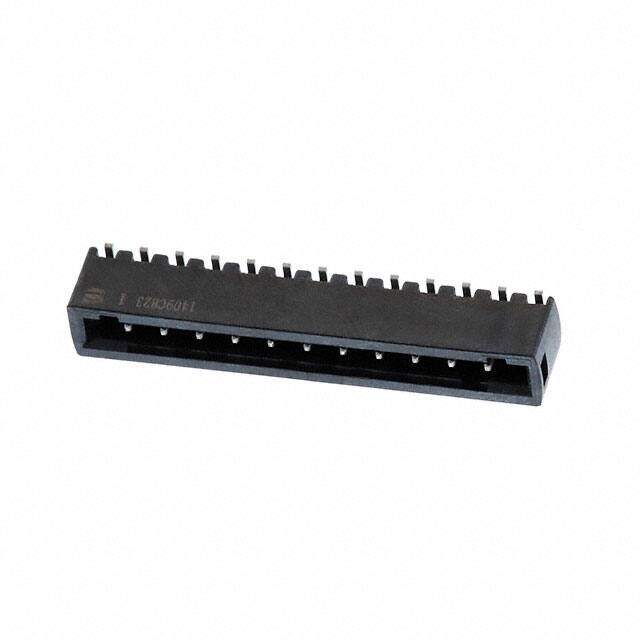

CONNECTOR, HEADER, 11POS, 1ROW, 2.54MM
PDF
/
Buying Options
Total Price: USD $8.24
Unit Price: USD $8.2368
≥1 USD $8.2368
≥10 USD $7.41488
≥100 USD $6.626488
Inventory: 592
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 7mm
Length 33.25mm
Technical
Number of Positions Per Level 11
Header Orientation 90°, Right Angle
Contact Mating Finish Tin
Insertion Force-Max 4.8928 N
Contact Pattern RECTANGULAR
Current 6A
Number of Levels 1
Polarization Key POLARIZED HOUSING
Voltage 160V
Contact Resistance 20mOhm
Contact Style SQ PIN-SKT
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Reliability COMMERCIAL
Termination Style Solder
Reference Standard UL
Number of Conductors ONE
Current Rating 7.3A
Insulation Height 0.197 5.00mm
Depth 5mm
Orientation Horizontal
Total Number of Contacts 11
Pitch 0.100 2.54mm
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.30
Voltage - Rated 160V
Gender Male
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series har-flexicon?
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Material Glass fibre, Polymer
Mounting Type Surface Mount
Mount Panel, Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
