14110413002000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

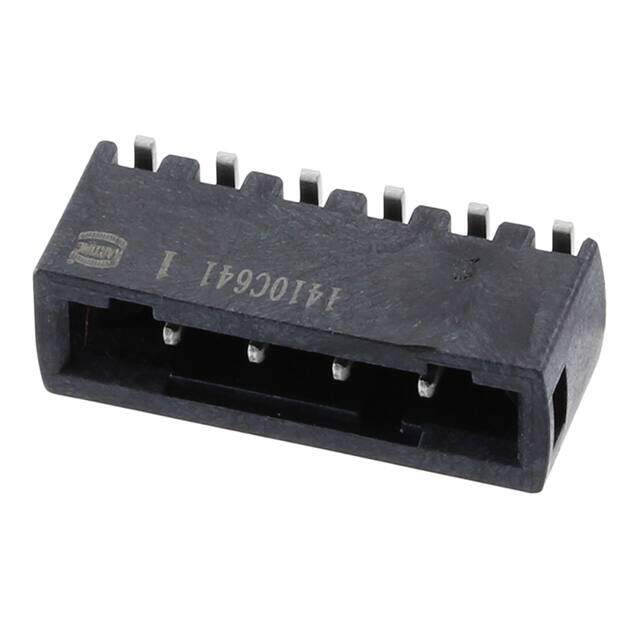

HARTING 14110413002000HEADER, 4WAY, 1ROW, 2.54MM, HAR-FLEXICON
PDF
/
Buying Options
Total Price: USD $1.24
Unit Price: USD $1.2408
≥1 USD $1.2408
≥10 USD $1.05072
≥100 USD $0.9438
Inventory: 2144
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 7mm
Length 15.47mm
Technical
Number of Positions Per Level 4
Header Orientation 90°, Right Angle
Contact Mating Finish Tin
Contact Pattern RECTANGULAR
Current 6A
Number of Levels 1
Polarization Key POLARIZED HOUSING
Voltage 160V
Contact Resistance 20mOhm
Contact Style SQ PIN-SKT
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Reliability COMMERCIAL
Termination Style Solder
Reference Standard UL
Number of Conductors ONE
Current Rating 7.3A
Insulation Height 0.197 5.00mm
Depth 5mm
Orientation Horizontal
Total Number of Contacts 4
Pitch 0.100 2.54mm
Subcategory Headers and Edge Type Connectors
Voltage - Rated 160V
Gender Male
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series har-flexicon?
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Material Glass fibre, Polymer
Mounting Type Surface Mount
Mount Panel, Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
