14110413001000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

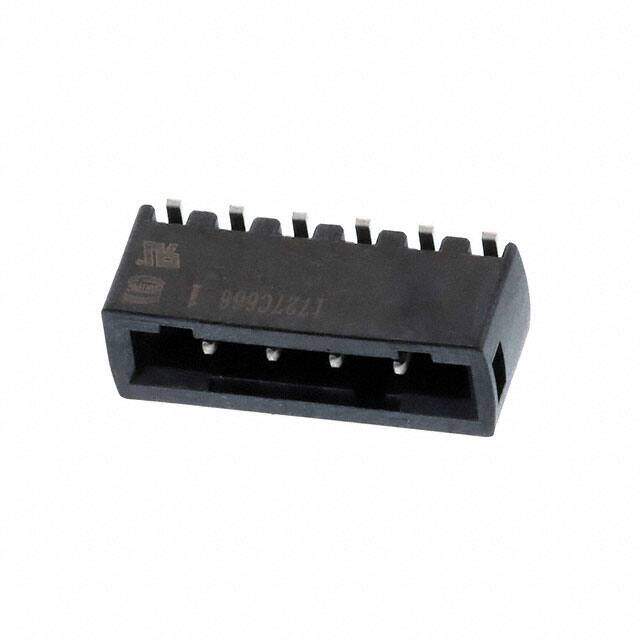

HARTING 14110413001000HEADER, 4WAY, 1ROW, 2.54MM, HAR-FLEXICON
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.496
≥1 USD $1.496
≥10 USD $1.30416
≥100 USD $1.165384
Inventory: 573
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mount Panel, Surface Mount
Mounting Type Surface Mount
Material Glass fibre, Polymer
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series har-flexicon?
Feature Board Guide, Pick and Place Cap
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Gender Male
Voltage - Rated 160V
Pitch 0.100 2.54mm
Depth 7.45mm
Insulation Height 0.254 6.45mm
Current Rating 7.3A
Termination Style Solder
Voltage 160V
Number of Levels 1
Current 6A
Contact Mating Finish Tin
Header Orientation Vertical
Number of Positions Per Level 4
Dimensions
Length 15.47mm
Width 8.8mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
