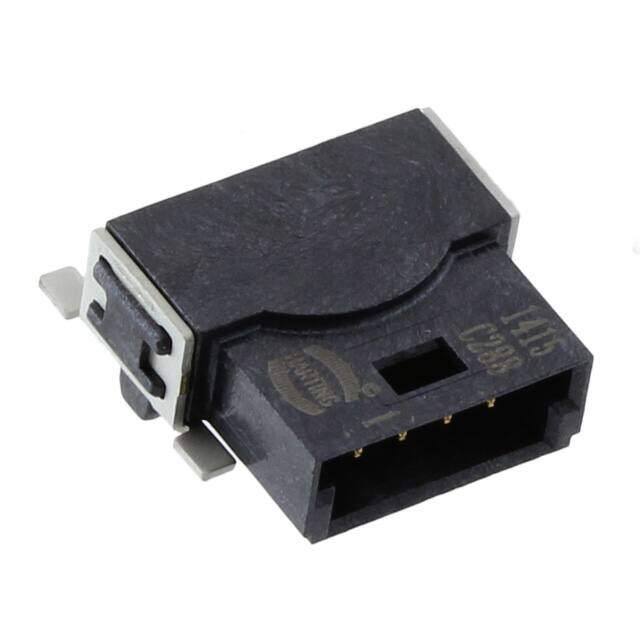

14110410002000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
CONNECTOR, HEADER, 4POS, 1ROW, 1.27MM
PDF
/
Buying Options
Total Price: USD $4.08
Unit Price: USD $4.0832
≥1 USD $4.0832
≥10 USD $3.70832
≥100 USD $3.512256
≥500 USD $3.430592
≥1000 USD $3.267176
≥3000 USD $2.858768
Inventory: 263
Minimum: 1
-
+
Technical Details
Technical
Number of Levels 1
Current 2A
Number of Poles 4
Contact Pattern RECTANGULAR
Contact Mating Finish Gold
Header Orientation 90°, Right Angle
Polarization Key POLARIZED HOUSING
Voltage 16V
Contact Resistance 20mOhm
Contact Style SQ PIN-SKT
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Reliability COMMERCIAL
Termination Style Solder
Reference Standard UL
Number of Conductors ONE
Current Rating 2.7A
Insulation Height 0.139 3.53mm
Depth 3.52mm
Orientation Horizontal
Total Number of Contacts 4
Pitch 0.050 1.27mm
Subcategory Headers and Edge Type Connectors
Additional Feature 560 PCS PER REEL
Voltage - Rated 16V
Gender Male
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
Series har-flexicon?
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Dimensions
Length 10.13mm
Width 10.35mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Material Glass fibre, Polymer
Mounting Type Surface Mount
Mount Panel, Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
