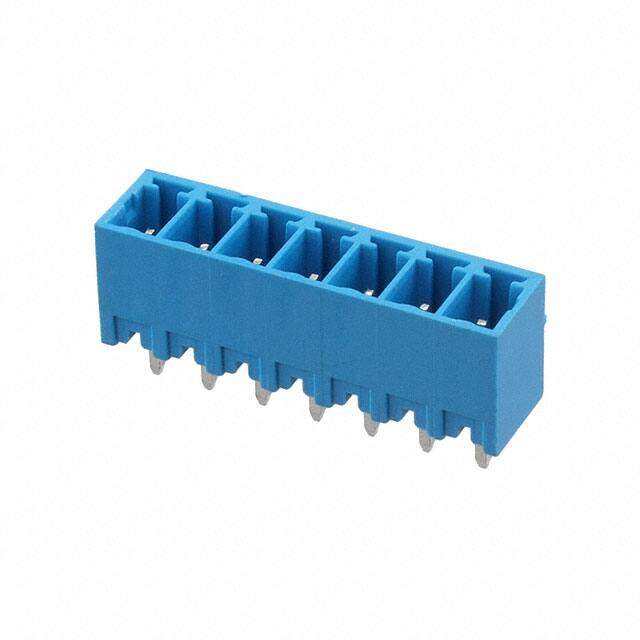

TBP02R2-381-07BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERMINAL BLOCK, PLUGGABLE, 3.81,
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9944
≥1 USD $0.9944
≥10 USD $0.62128
≥100 USD $0.53152
≥500 USD $0.47784
≥1000 USD $0.467852
≥3000 USD $0.398182
Inventory: 1404
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 7A
Header Orientation Vertical
Voltage - IEC 250V
Current - UL 8A
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Termination Style Solder
Insulation Height 0.362 9.20mm
Pitch 0.150 3.81mm
Color Blue
Number of Positions 7
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series TBP02R2-381
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
