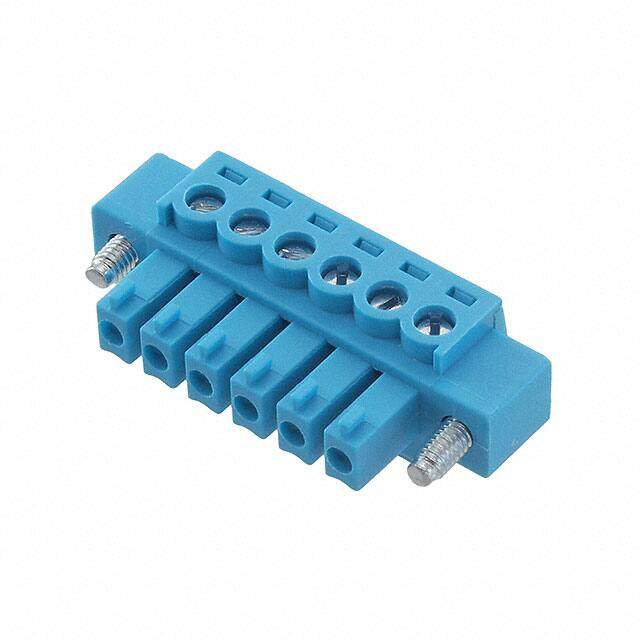

TBP02P1W-381-06BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERMINAL BLOCK, PLUGGABLE, 3.81,
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.056
≥1 USD $1.056
≥10 USD $0.80256
≥100 USD $0.743776
≥500 USD $0.668624
≥1000 USD $0.652256
≥3000 USD $0.5742
Inventory: 1243
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series TBP02P1W-381
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 6
Color Blue
Pitch 0.150 3.81mm
Insulation Height 0.441 11.20mm
Termination Style Screw - Leaf Spring, Wire Guard
Number of Levels 1
Contact Mating Finish Nickel
Voltage - UL 300V
Wire Gauge or Range - AWG 16-28 AWG
Current - UL 8A
Voltage - IEC 250V
Torque - Screw 0.2 Nm (1.7 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 1.5mm2
Wire Strip Length 7mm
Current - IEC 7A
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
