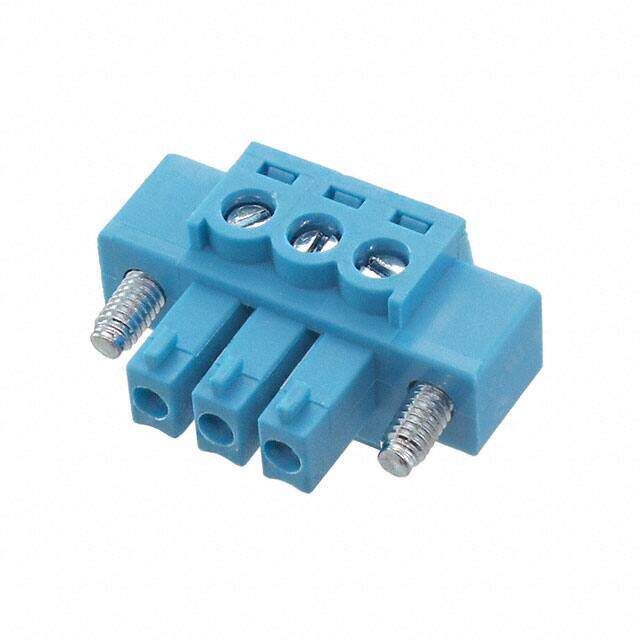

TBP02P1W-381-03BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TBP02P1W-381 RoHS Compliant Mating Flange Nickel Terminal Block Plug, Female Sockets 16-28AWG -40C~105C 8A 250V
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.8448
≥1 USD $0.8448
≥10 USD $0.52888
≥100 USD $0.452672
≥500 USD $0.406912
≥1000 USD $0.398376
≥3000 USD $0.339046
Inventory: 1011
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M2
Current - IEC 7A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 1.5mm2
Plug Wire Entry 180°
Torque - Screw 0.2 Nm (1.7 Lb-In)
Voltage - IEC 250V
Current - UL 8A
Wire Gauge or Range - AWG 16-28 AWG
Voltage - UL 300V
Contact Mating Finish Nickel
Number of Levels 1
Termination Style Screw - Leaf Spring, Wire Guard
Insulation Height 0.441 11.20mm
Pitch 0.150 3.81mm
Color Blue
Number of Positions 3
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series TBP02P1W-381
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polyamide (PA66), Nylon 6/6
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
