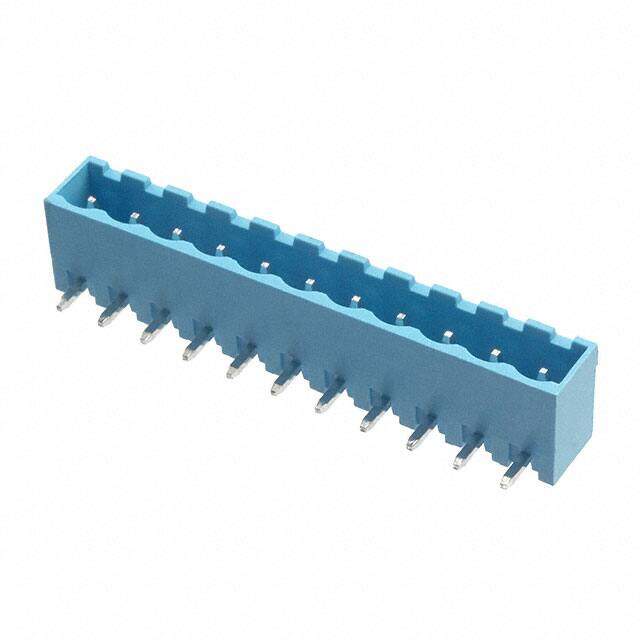

TBP01R1-508-11BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERMINAL BLOCK, PLUGGABLE, 5.08,
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.8184
≥1 USD $0.8184
≥10 USD $0.572
≥100 USD $0.533632
≥500 USD $0.484352
≥1000 USD $0.482152
≥3000 USD $0.407194
Inventory: 352
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series TBP01R1-508
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Blue
Pitch 0.200 5.08mm
Insulation Height 0.335 8.51mm
Termination Style Solder
Contact Tail Length 0.157 4.00mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 16A
Voltage - IEC 320V
Positions Per Level 11
Header Orientation 90°, Right Angle
Current - IEC 20A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
