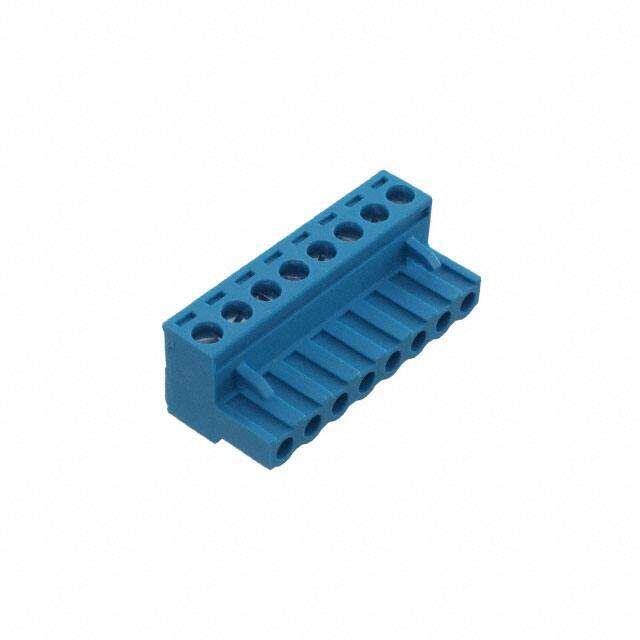

TBP01P1-508-08BE image
Favorite
TBP01P1-508-08BE image
Favorite

TBP01P1-508-08BE

CUI Devices
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERMINAL BLOCK, PLUGGABLE, 5.08
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.496
≥1 USD $1.496
≥10 USD $1.13168
≥100 USD $1.04896
≥500 USD $0.94336
≥1000 USD $0.920304
≥3000 USD $0.805226
Inventory: 2591
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Series TBP01P1-508
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 8
Color Blue
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Nickel
Voltage - UL 300V
Wire Gauge or Range - AWG 12-28 AWG
Current - UL 16A
Voltage - IEC 320V
Torque - Screw 0.5 Nm (4.4 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 2.5mm2
Wire Strip Length 7mm
Current - IEC 20A
Screw Size M3

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
