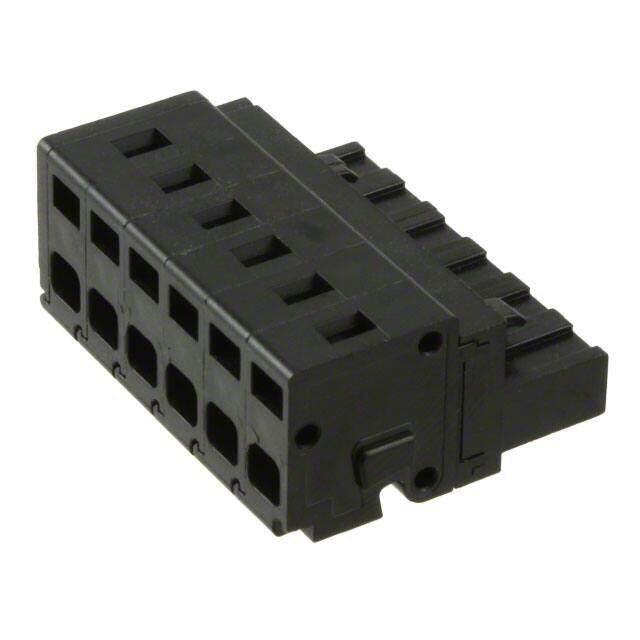

SCFF06210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $7.06
Unit Price: USD $7.05815
≥1 USD $7.05815
≥200 USD $2.817483
≥500 USD $2.722955
≥1000 USD $2.67569
Inventory: 1159
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 6
Wire Strip Length 6.35mm
Plug Wire Entry 180°
Positions Per Level 6
Current - UL 15A
Wire Gauge or Range - AWG 12-28 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 28 AWG
Current 15A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Insulation Height 0.550 13.97mm
Pitch 0.200 5.08mm
Color Black
Number of Positions 6
Type Plug, Female Sockets
Termination IDC
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series SCFF
Published 2006
Packaging Bulk
Operating Temperature 105°C
Physical
Housing Material Polyphenylene Oxide (PPO)
Number of Pins 6
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 8 Weeks
