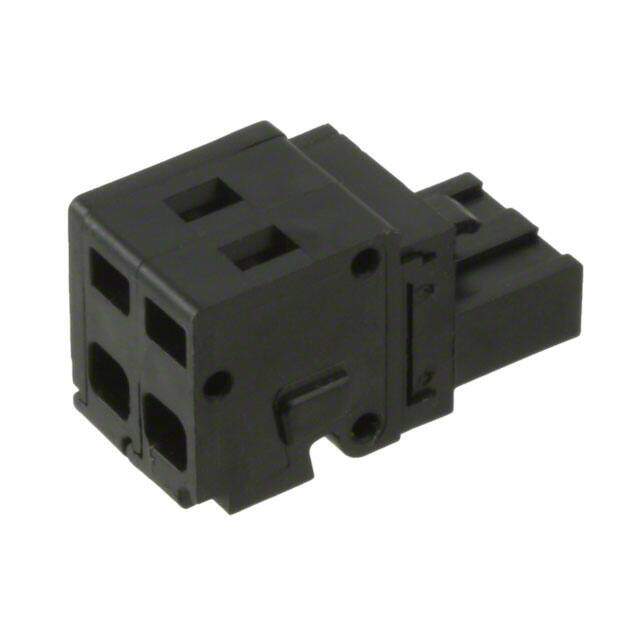

SCFF02210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 5.08MM
PDF
/
Inventory: 6023
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2006
Series SCFF
Feature Retention Latches (Non-Wire Side)
Part Status Active
Termination IDC
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 2
Color Black
Number of Rows 1
Additional Feature PPO, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.550 13.97mm
Reach Compliance Code unknown
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-28 AWG
Number of Ways 2
Safety Approval UL; VDE; CSA
Plug Wire Entry 180°
Wire Strip Length 6.35mm
Fastening Method SPRING LOADED
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
