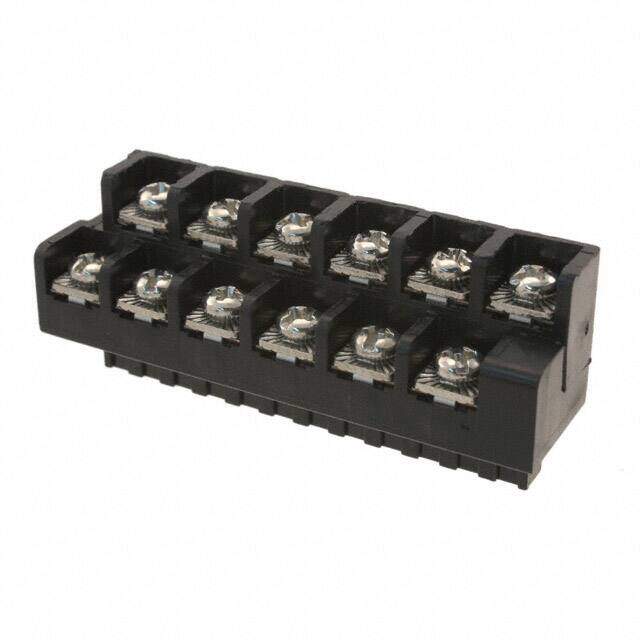

FXPT12200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 12POS 5.08MM
PDF
/
Buying Options
Total Price: USD $7.84
Unit Price: USD $7.835265
≥1 USD $7.835265
≥10 USD $7.391762
≥100 USD $6.97336
≥500 USD $6.578637
≥1000 USD $6.206261
Inventory: 1162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2008
Series FXP FlexiPlug?
Feature Retention Latches (Non-Wire Side)
Part Status Active
Termination Screw
Type Plug, Female Sockets
Number of Positions 12
Max Operating Temperature 105°C
Min Operating Temperature 0°C
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Straight
Depth 29.05mm
Insulation Height 0.690 17.53mm
Current Rating 15A
Termination Style Screw with Captive Plate
Number of Contacts 12
Housing Color Black
Voltage 300V
Number of Circuits 12
Number of Levels 2
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 15A
Torque - Screw 1.13 Nm (10.0 Lb-In)
Positions Per Level 6
Plug Wire Entry 90°
Wire Strip Length 7.87mm
Number of Positions Per Level 12
Dimensions
Length 67.81mm
Width 17.52mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
