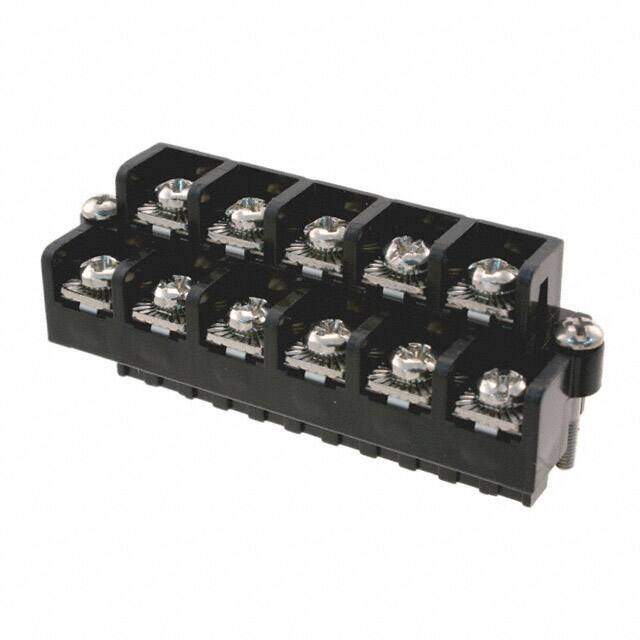

FXPT11200E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 11POS 5.08MM
PDF
/
Inventory: 9557
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2008
Series FXP FlexiPlug?
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 300V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 0.690 17.53mm
Current Rating 15A
Termination Style Screw with Captive Plate
Number of Contacts 11
Voltage 300V
Number of Levels 2
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-26 AWG
Torque - Screw 1.13 Nm (10.0 Lb-In)
Positions Per Level 5, 6
Plug Wire Entry 90°
Wire Strip Length 7.87mm
Dimensions
Length 67.05mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
