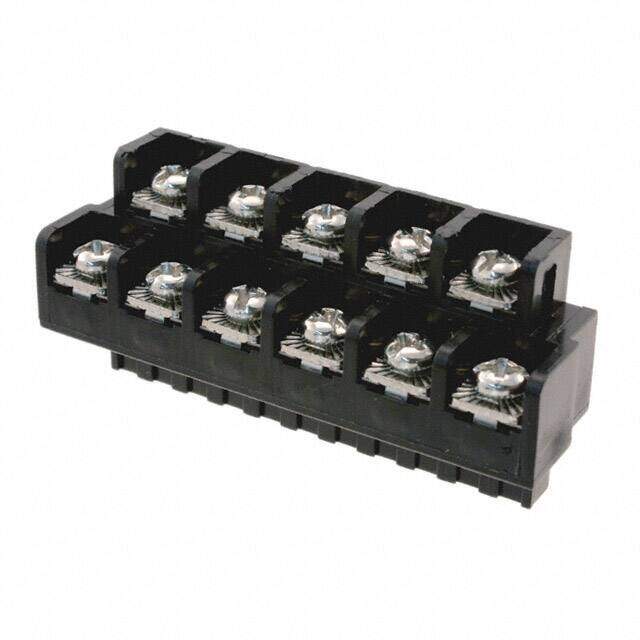

FXPT11200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 11POS 5.08MM
PDF
/
Inventory: 3972
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2008
Series FXP FlexiPlug?
Feature Retention Latches (Non-Wire Side)
Part Status Active
Termination Screw
Type Plug, Female Sockets
Number of Positions 11
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Straight
Depth 29.05mm
Insulation Height 0.690 17.53mm
Current Rating 15A
Termination Style Screw with Captive Plate
Number of Contacts 11
Housing Color Black
Voltage 300V
Number of Circuits 11
Number of Levels 2
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 15A
Torque - Screw 1.13 Nm (10.0 Lb-In)
Positions Per Level 5, 6
Plug Wire Entry 90°
Wire Strip Length 7.87mm
Number of Positions Per Level 11
Dimensions
Length 62.74mm
Width 17.52mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
