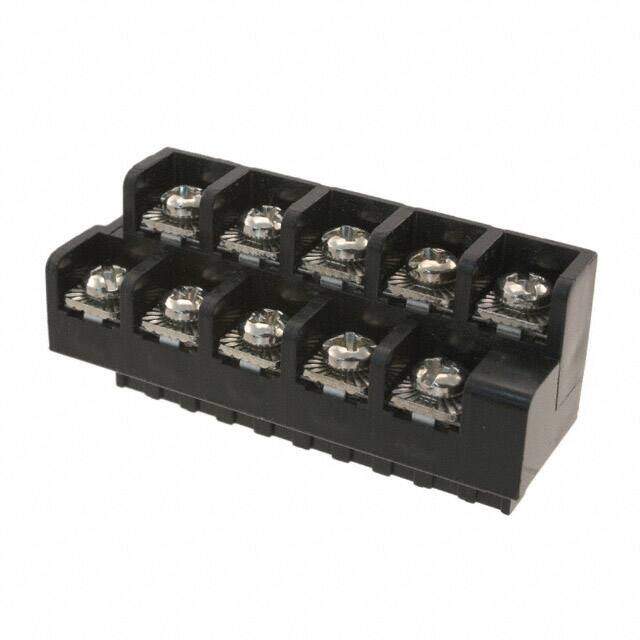

FXPT10200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 10POS 5.08MM
PDF
/
Buying Options
Total Price: USD $6.56
Unit Price: USD $6.5648
≥1 USD $6.5648
≥10 USD $5.1744
≥100 USD $4.922016
≥500 USD $4.46776
≥1000 USD $4.291144
≥3000 USD $3.786288
Inventory: 210
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 17.52mm
Length 57.66mm
Technical
Number of Positions Per Level 10
Wire Strip Length 7.87mm
Plug Wire Entry 90°
Positions Per Level 5
Torque - Screw 1.13 Nm (10.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Poles 10
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 2
Number of Circuits 10
Voltage 300V
Housing Color Black
Number of Contacts 10
Termination Style Screw with Captive Plate
Current Rating 15A
Insulation Height 0.690 17.53mm
Depth 29.05mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Number of Positions 10
Type Plug, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series FXP FlexiPlug?
Published 2008
Packaging Bulk
Operating Temperature 105°C
Physical
Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
