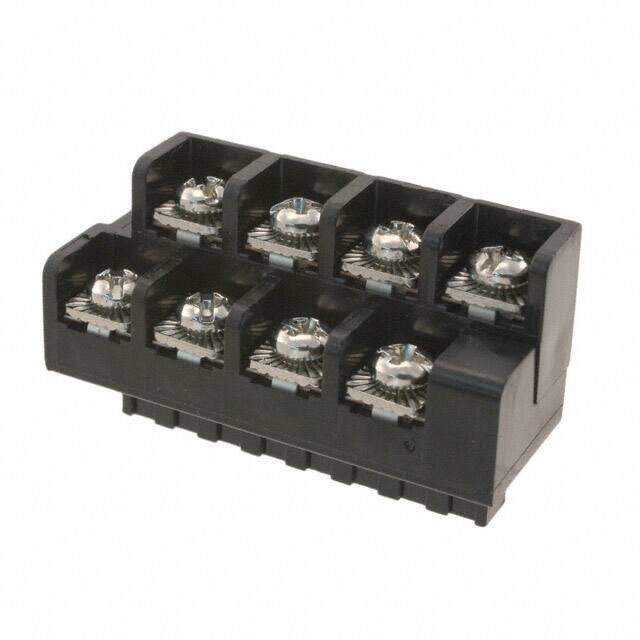

FXPT08200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 8POS 5.08MM
PDF
/
Buying Options
Total Price: USD $5.9
Unit Price: USD $5.898853
≥1 USD $5.898853
≥10 USD $5.564955
≥100 USD $5.24996
≥500 USD $4.952797
≥1000 USD $4.672447
Inventory: 7204
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 17.52mm
Length 47.49mm
Technical
Number of Positions Per Level 8
Wire Strip Length 7.87mm
Plug Wire Entry 90°
Positions Per Level 4
Torque - Screw 1.13 Nm (10.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 2
Max Current Rating 15A
Max Supply Voltage 300V
Number of Circuits 8
Voltage 300V
Housing Color Black
Number of Contacts 8
Termination Style Screw with Captive Plate
Current Rating 15A
Insulation Height 0.690 17.53mm
Depth 29.05mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature 0°C
Max Operating Temperature 105°C
Number of Positions 8
Type Plug, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series FXP FlexiPlug?
Published 2008
Packaging Bulk
Operating Temperature 105°C
Physical
Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
