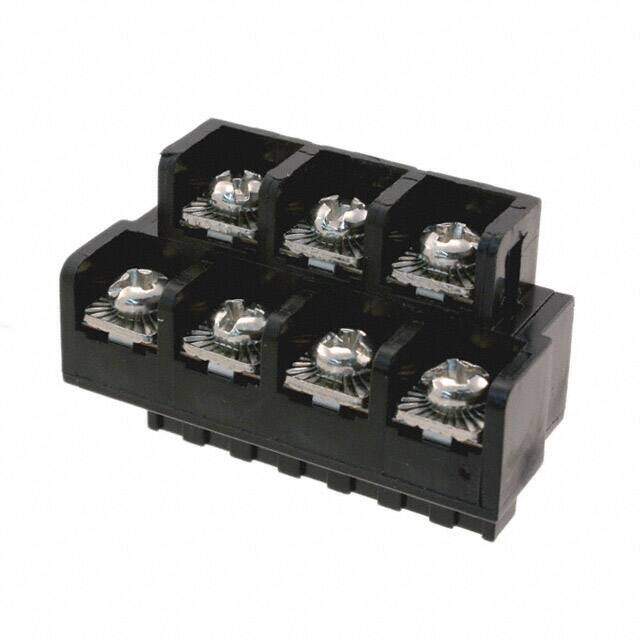

FXPT07200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 7POS 5.08MM
PDF
/
Inventory: 4457
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 17.52mm
Length 42.42mm
Technical
Number of Positions Per Level 7
Wire Strip Length 7.87mm
Plug Wire Entry 90°
Positions Per Level 3, 4
Torque - Screw 1.13 Nm (10.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 2
Number of Circuits 7
Voltage 300V
Housing Color Black
Number of Contacts 7
Termination Style Screw with Captive Plate
Current Rating 15A
Insulation Height 0.690 17.53mm
Depth 29.05mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Number of Positions 7
Type Plug, Female Sockets
Termination Screw
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series FXP FlexiPlug?
Published 2008
Packaging Bulk
Operating Temperature 105°C
Physical
Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
