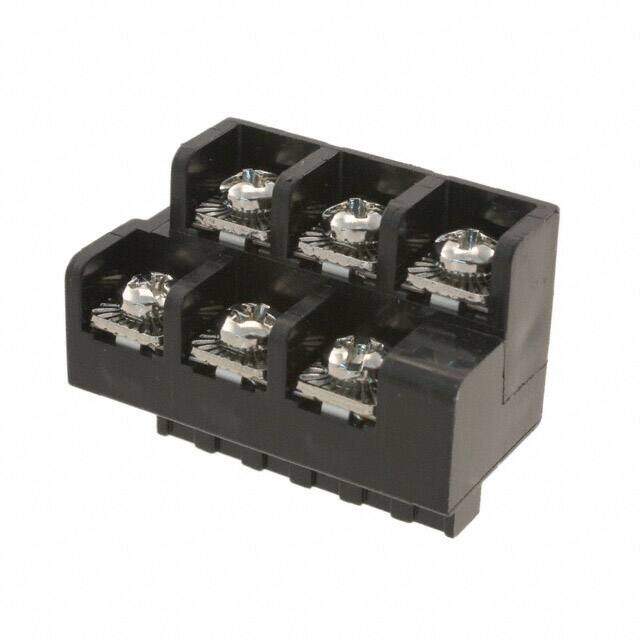

FXPT06200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6POS 5.08MM
PDF
/
Buying Options
Total Price: USD $5.85
Unit Price: USD $5.853658
≥1 USD $5.853658
≥10 USD $5.522316
≥100 USD $5.209737
≥500 USD $4.914843
≥1000 USD $4.636648
Inventory: 1150
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2008
Series FXP FlexiPlug?
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Type Plug, Female Sockets
Number of Positions 6
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Straight
Depth 29.05mm
Insulation Height 0.690 17.53mm
Current Rating 15A
Termination Style Screw with Captive Plate
Number of Contacts 6
Housing Color Black
Voltage 300V
Number of Circuits 6
Max Supply Voltage 300V
Max Current Rating 15A
Number of Levels 2
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 15A
Torque - Screw 1.13 Nm (10.0 Lb-In)
Positions Per Level 3
Plug Wire Entry 90°
Wire Strip Length 7.87mm
Number of Positions Per Level 6
Dimensions
Length 37.33mm
Width 17.52mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
