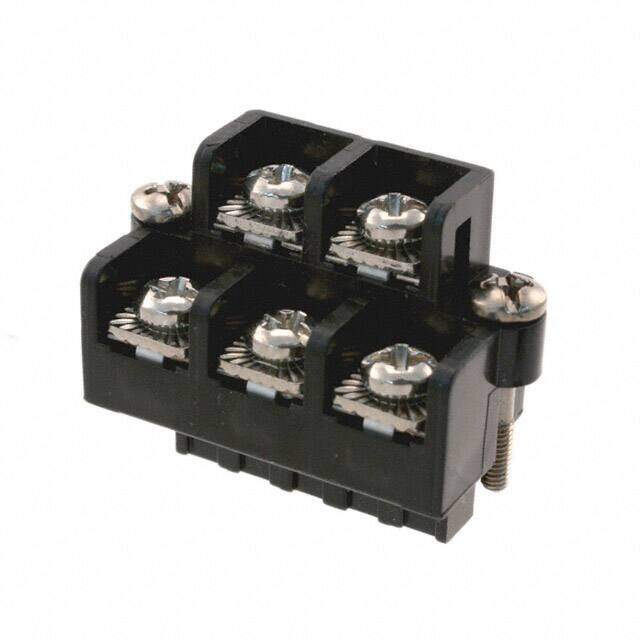

FXPT05200E image
Favorite
FXPT05200E image
Favorite

FXPT05200E

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 5POS 5.08MM
PDF
/
Inventory: 2166
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Length 36.57mm

Technical

Number of Positions Per Level 5
Wire Strip Length 7.87mm
Plug Wire Entry 90°
Positions Per Level 2, 3
Torque - Screw 1.13 Nm (10.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 2
Max Current Rating 15A
Max Supply Voltage 300V
Number of Circuits 5
Voltage 300V
Housing Color Black
Number of Contacts 5
Termination Style Screw with Captive Plate
Current Rating 15A
Insulation Height 0.690 17.53mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature 0°C
Max Operating Temperature 105°C
Number of Positions 5
Type Plug, Female Sockets
Termination Screw
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series FXP FlexiPlug?
Published 2008
Packaging Bulk
Operating Temperature 105°C

Physical

Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
