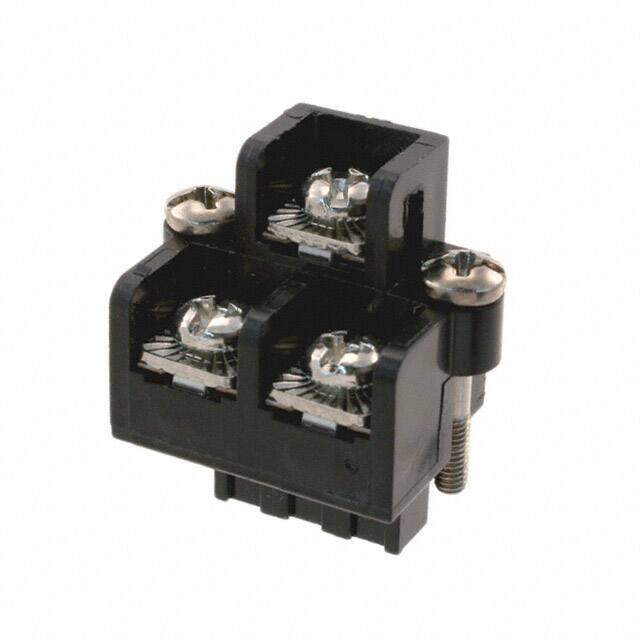

FXPT03200E

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS 5.08MM
PDF
/
Inventory: 3298
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Length 26.41mm

Technical

Wire Strip Length 7.87mm
Plug Wire Entry 90°
Positions Per Level 1, 2
Torque - Screw 1.13 Nm (10.0 Lb-In)
Wire Gauge or Range - AWG 12-26 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 2
Voltage 300V
Number of Contacts 3
Lead Pitch 3.5mm
Termination Style Screw with Captive Plate
Current Rating 15A
Insulation Height 0.690 17.53mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated DC 300V
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screw
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series FXP FlexiPlug?
Published 2008
Packaging Bulk
Operating Temperature 105°C

Physical

Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
