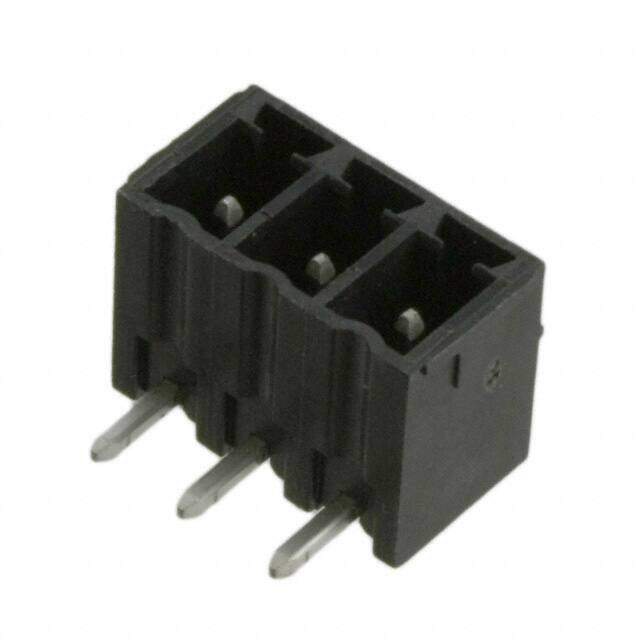

ELVH03100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 3POS 90DEG 3.81MM
PDF
/
Inventory: 5551
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 12.24mm
Technical
Number of Positions Per Level 3
Header Orientation 90°, Right Angle
Safety Approval UL; CSA
Number of Ways 3
Number of Decks 1
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Insulation Resistance 100GOhm
Termination Style Solder
Current Rating 12A
Insulation Height 0.273 6.93mm
Depth 9.14mm
Orientation Right Angle
Pitch 0.150 3.81mm
Additional Feature PA, UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Part Status Active
Series ELVH
Published 2012
Packaging Bulk
Operating Temperature 125°C
Physical
Housing Material Polyamide (PA46), Nylon 4/6
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
