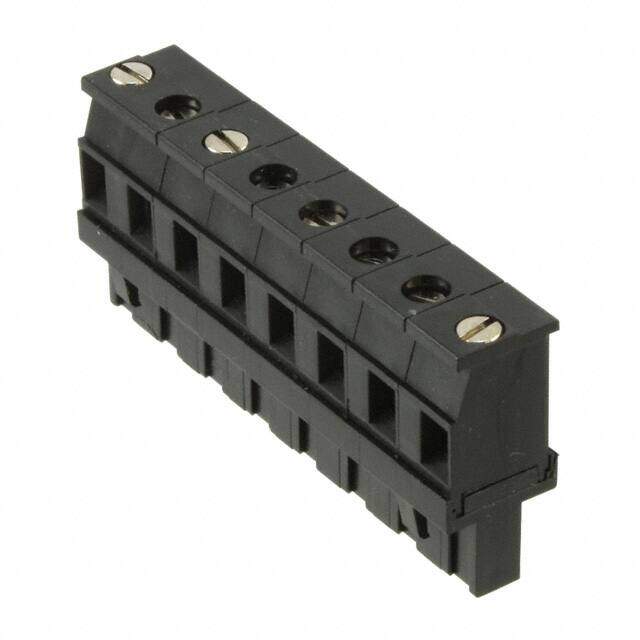

ELFT08450

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description ELFT RoHS Compliant Straight Retention Latches (Wire Side) Terminal Block Plug, Female Sockets 26AWG 90° 15A 300V
PDF
/
Inventory: 3519
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Technical

Wire Strip Length 7.87mm
Plug Wire Entry 90°
Torque - Screw 0.79 Nm (7.0 Lb-In)
Wire Gauge or Range - AWG 12-26 AWG
Contact Mating Finish Tin
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Voltage 300V
Number of Contacts 8
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 1.030 26.16mm
Orientation Straight
Pitch 0.300 7.62mm
Voltage - Rated 300V
Color Black
Type Plug, Female Sockets
Termination Screw
Part Status Active
Feature Retention Latches (Wire Side)
Series ELFT
Packaging Bulk

Physical

Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Nickel, Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
