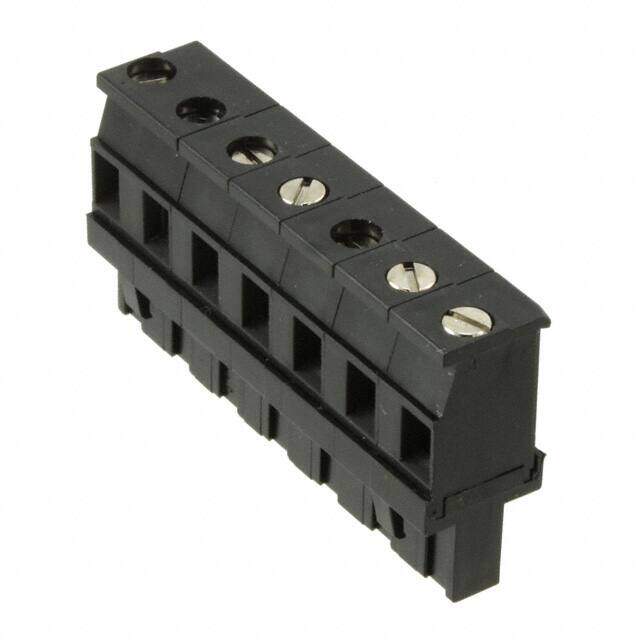

ELFT07450
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug
PDF
/
Inventory: 4439
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Nickel, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Packaging Bulk
Series ELFT
Feature Retention Latches (Wire Side)
Part Status Active
Termination Screw
Type Plug, Female Sockets
Color Black
Voltage - Rated 300V
Pitch 0.300 7.62mm
Orientation Straight
Insulation Height 1.030 26.16mm
Current Rating 15A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 7
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-26 AWG
Torque - Screw 0.79 Nm (7.0 Lb-In)
Plug Wire Entry 90°
Wire Strip Length 7.87mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
