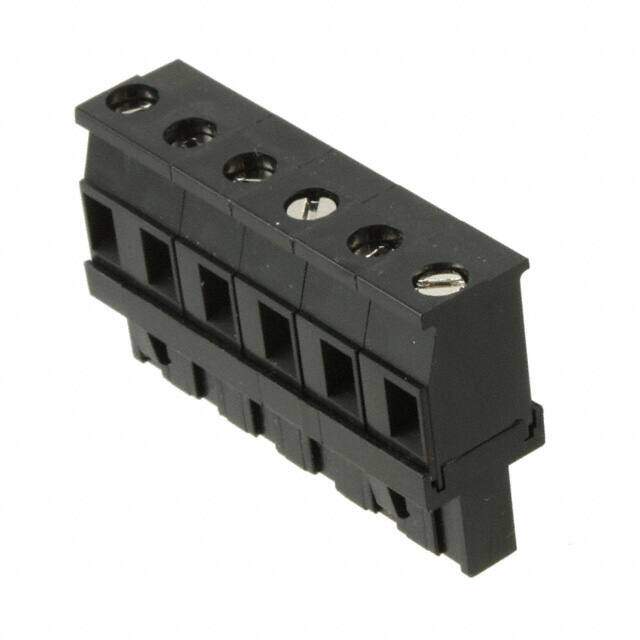

ELFT06450 image
Favorite
ELFT06450 image
Favorite

ELFT06450

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Header
PDF
/
Inventory: 9148
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Nickel, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)

Technical

Packaging Bulk
Series ELFT
Feature Retention Latches (Wire Side)
Part Status Active
Termination Screw
Type Plug, Female Sockets
Number of Positions 6
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.300 7.62mm
Orientation Straight
Insulation Height 1.030 26.16mm
Current Rating 15A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 6
Housing Color Black
Voltage 300V
Number of Circuits 6
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 15A
Torque - Screw 0.79 Nm (7.0 Lb-In)
Positions Per Level 6
Plug Wire Entry 90°
Wire Strip Length 7.87mm
Number of Positions Per Level 6

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
