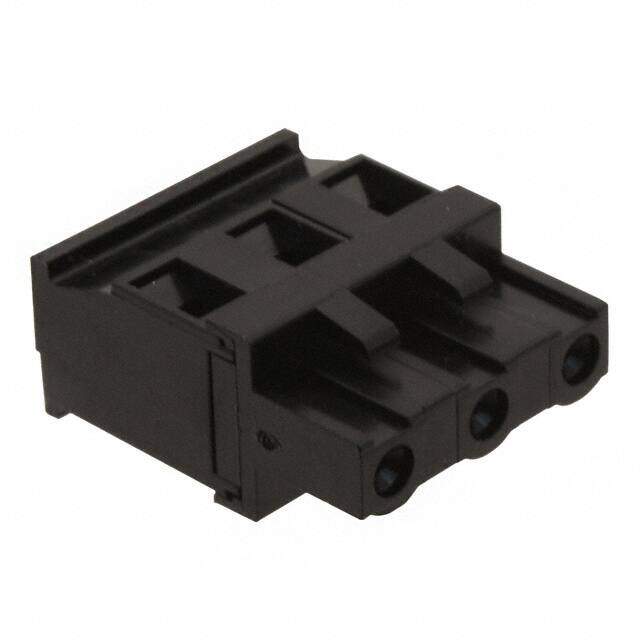

ELFT03450 image
Favorite
ELFT03450 image
Favorite

ELFT03450

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Header
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.6048
≥1 USD $2.6048
≥10 USD $1.98352
≥100 USD $1.615856
≥500 USD $1.193922
≥1000 USD $1.122106
Inventory: 70
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 3
Wire Strip Length 7.87mm
Plug Wire Entry 90°
Positions Per Level 3
Torque - Screw 0.79 Nm (7.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Number of Circuits 3
Voltage 300V
Housing Color Black
Number of Contacts 3
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 1.030 26.16mm
Orientation Straight
Pitch 0.300 7.62mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 3
Type Plug, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Retention Latches (Wire Side)
Series ELFT
Packaging Bulk

Physical

Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Nickel, Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
