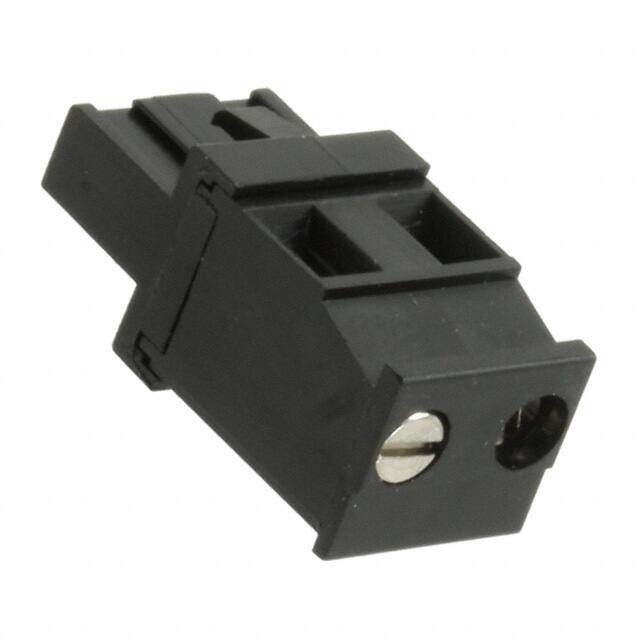

ELFT02450
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Header
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.936
≥1 USD $1.936
≥10 USD $1.4652
≥100 USD $1.357664
≥500 USD $1.220736
≥1000 USD $1.190992
≥3000 USD $1.042122
Inventory: 102
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 2
Wire Strip Length 7.87mm
Plug Wire Entry 90°
Positions Per Level 2
Torque - Screw 0.79 Nm (7.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Number of Circuits 2
Voltage 300V
Housing Color Black
Number of Contacts 2
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 1.030 26.16mm
Orientation Straight
Pitch 0.300 7.62mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 2
Type Plug, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Retention Latches (Wire Side)
Series ELFT
Packaging Bulk
Physical
Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Nickel, Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
