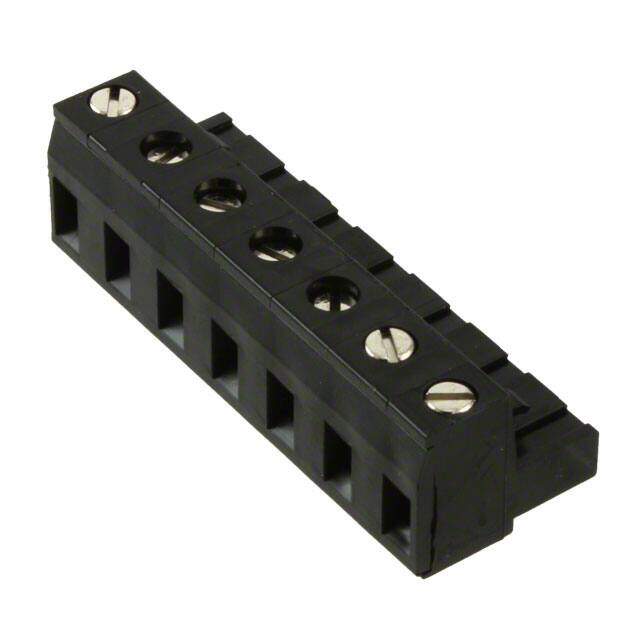

ELFP07410 image
Favorite
ELFP07410 image
Favorite

ELFP07410

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 7POS STR 7.62MM
PDF
/
Inventory: 3763
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Length 50.8mm

Technical

Wire Strip Length 7.87mm
Plug Wire Entry 180°
Torque - Screw 0.79 Nm (7.0 Lb-In)
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Contact Mating Finish Tin
Wire/Cable Gauge 14 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Max Current Rating 15A
Max Supply Voltage 300V
Voltage 450V
Number of Contacts 7
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 0.592 15.04mm
Depth 18.38mm
Orientation Right Angle
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Voltage - Rated 300V
Color Black
Number of Positions 7
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screw
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series ELFP
Published 2006
Packaging Bulk
Operating Temperature 105°C

Physical

Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Nickel, Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
