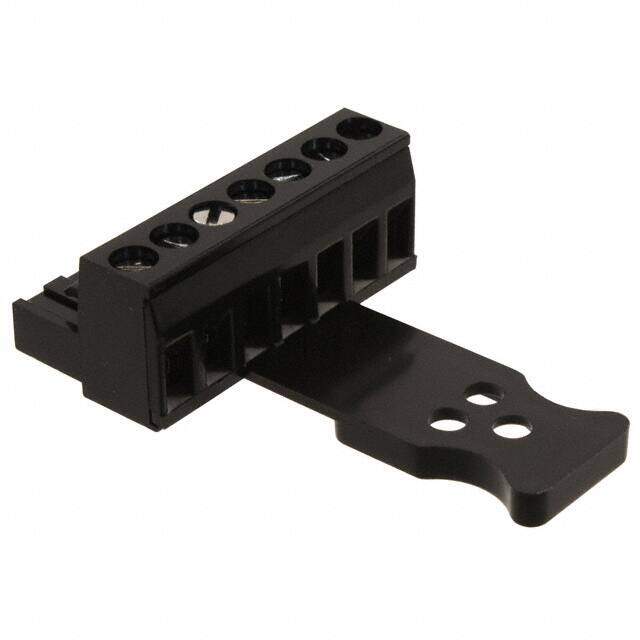

ELFP0721P0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 7POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $6.28
Unit Price: USD $6.2832
≥1 USD $6.2832
≥10 USD $4.95616
≥100 USD $4.714336
≥500 USD $4.279088
≥1000 USD $4.109776
≥3000 USD $3.626304
Inventory: 151
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Wire Strip Length 7.87mm
Plug Wire Entry 180°
Torque - Screw 0.79 Nm (7.0 Lb-In)
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Contact Mating Finish Tin-Lead
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Voltage 300V
Number of Contacts 7
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 0.661 16.80mm
Orientation Right Angle
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 300V
Gender Male
Color Black
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Retention Latches (Non-Wire Side), Strain Relief
Series ELFP
Published 2004
Packaging Bulk
Operating Temperature 105°C
Physical
Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
