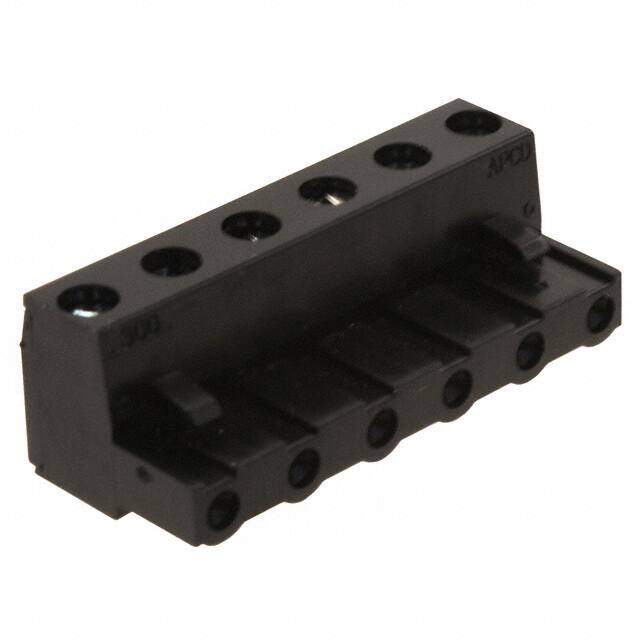

ELFP06410
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6POS STR 7.62MM
PDF
/
Inventory: 6791
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 43.18mm
Technical
Wire Strip Length 7.87mm
Plug Wire Entry 180°
Torque - Screw 0.79 Nm (7.0 Lb-In)
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Contact Mating Finish Tin
Wire/Cable Gauge 14 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Max Current Rating 15A
Max Supply Voltage 300V
Voltage 450V
Number of Contacts 6
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 0.592 15.04mm
Depth 18.38mm
Orientation Right Angle
Pitch 0.300 7.62mm
Voltage - Rated 300V
Color Black
Number of Positions 6
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screw
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series ELFP
Published 2006
Packaging Bulk
Operating Temperature 105°C
Physical
Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Nickel, Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
