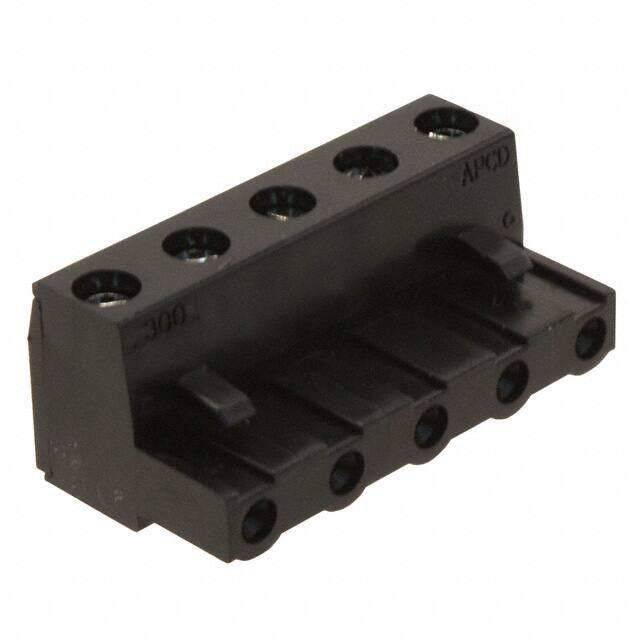

ELFP05410
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 5POS STR 7.62MM
PDF
/
Inventory: 2329
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Nickel, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2006
Series ELFP
Feature Retention Latches (Non-Wire Side)
Part Status Active
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Voltage - Rated 300V
Pitch 0.300 7.62mm
Orientation Right Angle
Insulation Height 0.592 15.04mm
Current Rating 15A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 5
Voltage 450V
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 14 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Torque - Screw 0.79 Nm (7.0 Lb-In)
Plug Wire Entry 180°
Wire Strip Length 7.87mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
