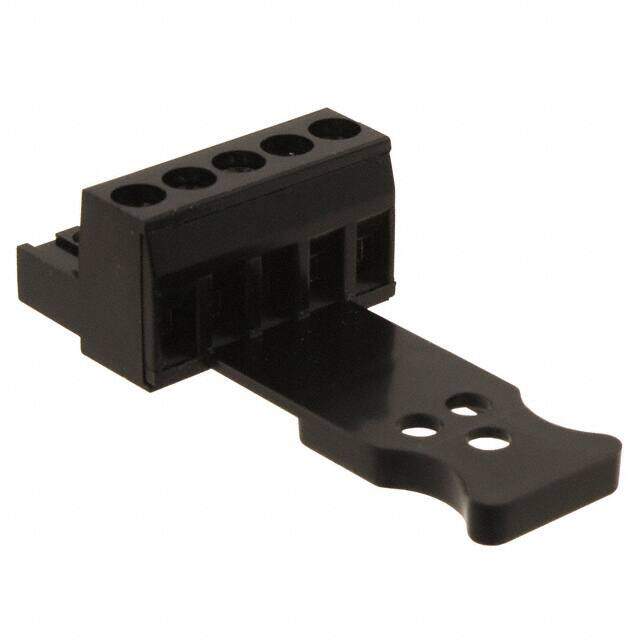

ELFP0521P0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 5POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $5
Unit Price: USD $4.9984
≥1 USD $4.9984
≥10 USD $3.8104
≥100 USD $3.56928
≥500 USD $3.172576
≥1000 USD $3.103672
Inventory: 220
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2004
Series ELFP
Feature Retention Latches (Non-Wire Side), Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Gender Male
Voltage - Rated 450V
Pitch 0.200 5.08mm
Orientation Right Angle
Insulation Height 0.661 16.80mm
Current Rating 15A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 5
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Contact Mating Finish Tin-Lead
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Torque - Screw 0.79 Nm (7.0 Lb-In)
Plug Wire Entry 180°
Wire Strip Length 7.87mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
