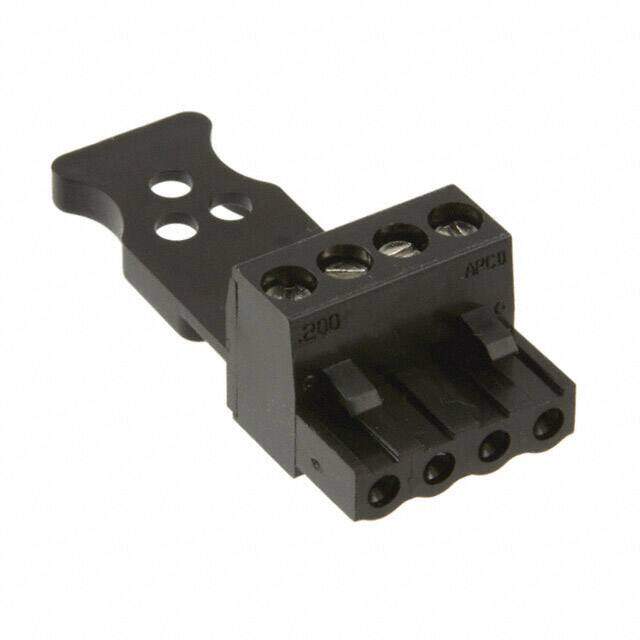

ELFP0421P0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 4POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $4.02
Unit Price: USD $4.0216
≥1 USD $4.0216
≥10 USD $3.06416
≥100 USD $2.870208
≥500 USD $2.551296
≥1000 USD $2.495768
≥3000 USD $2.301622
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2004
Series ELFP
Feature Retention Latches (Non-Wire Side), Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Type Plug, Female Sockets
Number of Positions 4
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Right Angle
Insulation Height 0.661 16.80mm
Current Rating 15A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 4
Housing Color Black
Voltage 300V
Number of Circuits 4
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin-Lead
Voltage - UL 300V
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Current - UL 15A
Torque - Screw 0.79 Nm (7.0 Lb-In)
Positions Per Level 4
Plug Wire Entry 180°
Wire Strip Length 7.87mm
Number of Positions Per Level 4
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
