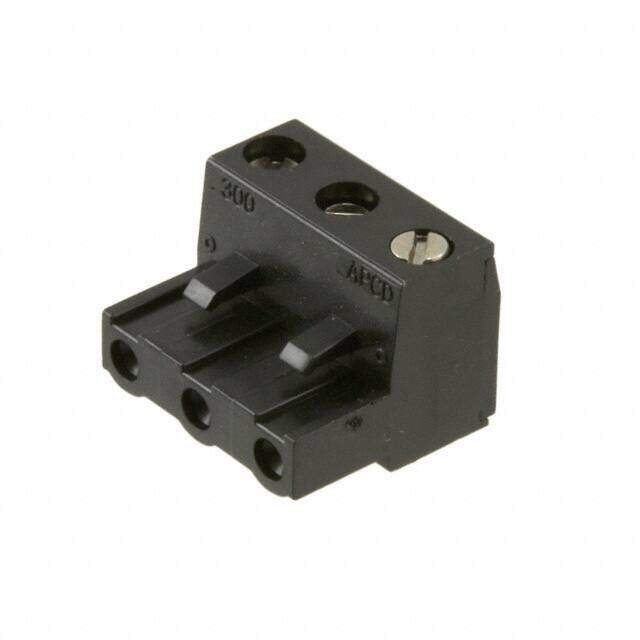

ELFP03410

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS STR 7.62MM
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.6048
≥1 USD $2.6048
≥10 USD $1.98352
≥100 USD $1.858208
≥500 USD $1.65176
≥1000 USD $1.615856
≥3000 USD $1.490157
Inventory: 79
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Nickel, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)

Technical

Operating Temperature 105°C
Packaging Bulk
Published 2006
Series ELFP
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Voltage - Rated 300V
Pitch 0.300 7.62mm
Orientation Right Angle
Insulation Height 0.592 15.04mm
Current Rating 15A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 3
Voltage 450V
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 14 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Torque - Screw 0.79 Nm (7.0 Lb-In)
Plug Wire Entry 180°
Wire Strip Length 7.87mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
