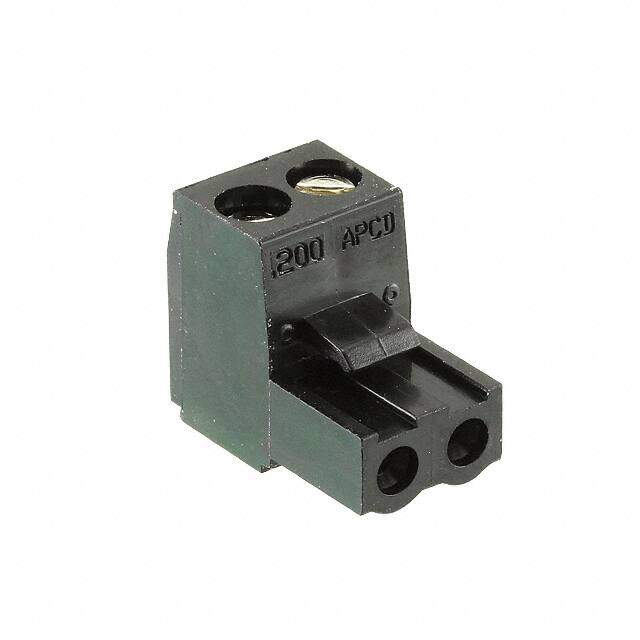

ELFP02210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 5.08MM
PDF
/
Inventory: 7486
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 10.16mm
Technical
Number of Positions Per Level 2
Wire Strip Length 7.87mm
Plug Wire Entry 180°
Positions Per Level 2
Torque - Screw 0.79 Nm (7.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Poles 2
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Max Current Rating 15A
Max Supply Voltage 300V
Number of Circuits 2
Voltage 300V
Housing Color Black
Number of Contacts 2
Termination Style Screw - Rising Cage Clamp
Insulation Height 0.592 15.04mm
Depth 18.38mm
Orientation Right Angle
Pitch 0.200 5.08mm
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 95°C
Number of Positions 2
Type Plug, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series ELFP
Published 2006
Packaging Tray
Operating Temperature -40°C~95°C
Physical
Housing Material Polyphenylene Oxide (PPO)
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
