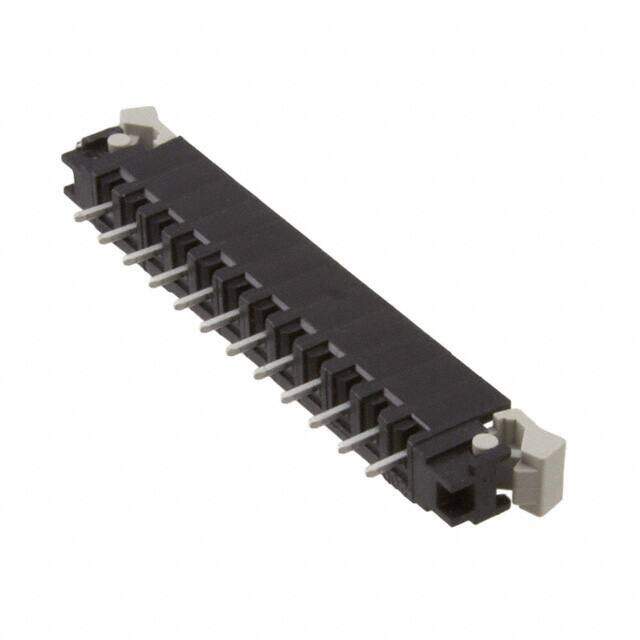

ELFH12250J image
Favorite
ELFH12250J image
Favorite

ELFH12250J

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 12POS VERT 5.08MM
PDF
/
Inventory: 960
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Header Orientation Vertical
Contact Mating Finish Tin-Lead
Current 15A
Number of Levels 1
Contact Tail Length 0.155 3.94mm
Voltage 300V
Insulation Resistance 100GOhm
Termination Style Solder
Current Rating 15A
Reach Compliance Code unknown
Insulation Height 0.500 12.70mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 300V
Color Black
Number of Positions 12
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Part Status Active
Feature Ejectors
Series ELFH
Published 2012
Packaging Bulk
Operating Temperature 105°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
