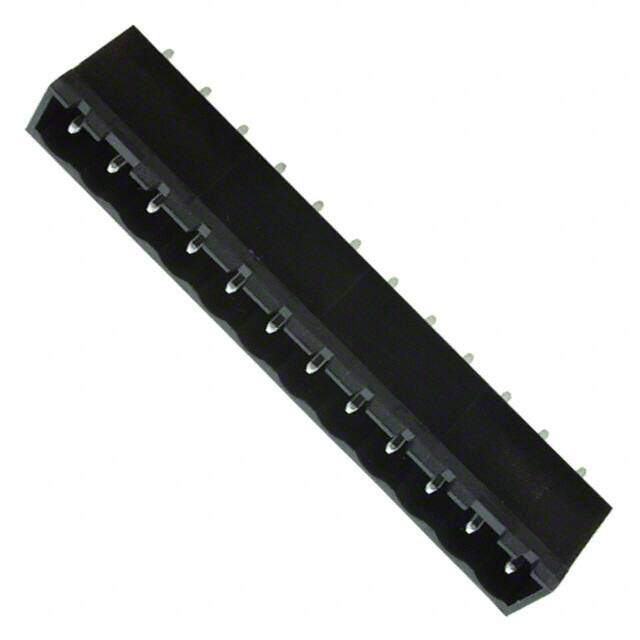

ELFH12250
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 12POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
≥10 USD $2.05568
≥100 USD $1.905024
≥500 USD $1.712656
≥1000 USD $1.670944
≥3000 USD $1.462067
Inventory: 144
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 61.11mm
Technical
Number of Positions Per Level 12
Header Orientation Vertical
Positions Per Level 12
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Voltage 300V
Insulation Resistance 100GOhm
Housing Color Black
Number of Contacts 12
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 8.1mm
Orientation Vertical
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 12
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series ELFH
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
