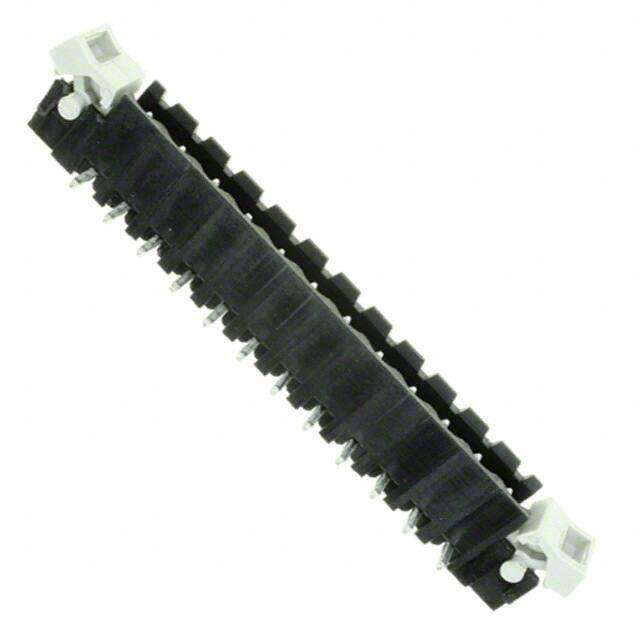

ELFH12210J
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 12POS 5.08MM
PDF
/
Inventory: 2632
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2012
Series ELFH
Feature Ejectors
Part Status Active
Termination Solder
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Black
Voltage - Rated 300V
Pitch 0.200 5.08mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Insulation Resistance 100GOhm
Voltage 300V
Contact Tail Length 0.155 3.94mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin-Lead
Voltage - UL 300V
Current - UL 15A
Positions Per Level 12
Header Orientation 90°, Right Angle
Number of Positions Per Level 12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
