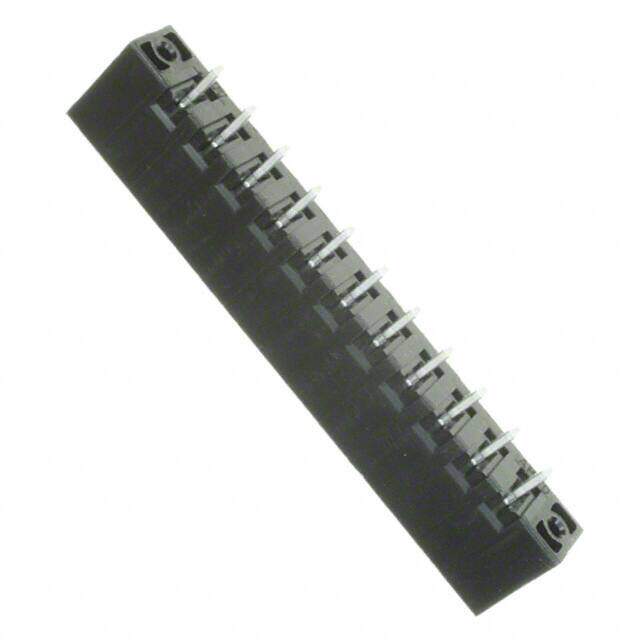

ELFH11250E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 11POS VERT 5.08MM
PDF
/
Inventory: 8264
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 66.04mm
Technical
Number of Positions Per Level 11
Header Orientation Vertical
Positions Per Level 11
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Voltage 300V
Housing Color Black
Number of Contacts 11
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 8.1mm
Orientation Vertical
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 11
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Part Status Active
Feature Mating Flange
Series ELFH
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
