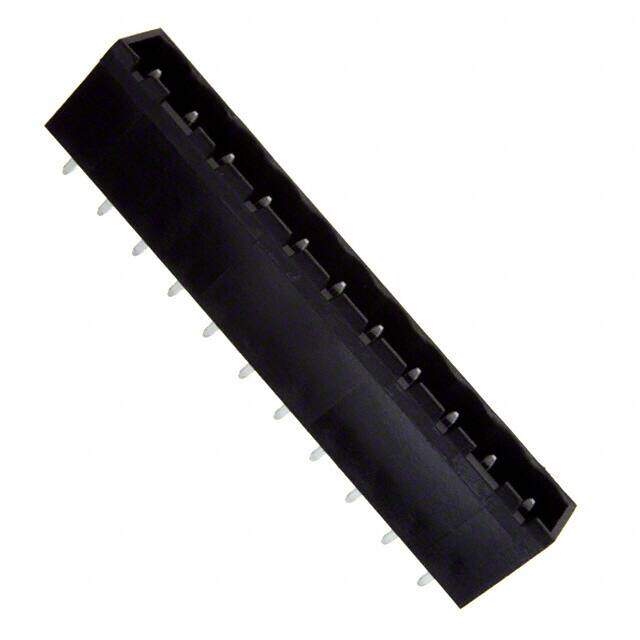

ELFH11250 image
Favorite
ELFH11250 image
Favorite

ELFH11250

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 11POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $2.71
Unit Price: USD $2.707143
≥1 USD $2.707143
≥10 USD $2.553906
≥100 USD $2.409354
≥500 USD $2.272969
≥1000 USD $2.144309
Inventory: 3483
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Length 56.03mm

Technical

Number of Positions Per Level 11
Header Orientation Vertical
Positions Per Level 11
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Voltage 300V
Housing Color Black
Number of Contacts 11
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 8.1mm
Orientation Vertical
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 11
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Part Status Active
Series ELFH
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass

Supply Chain

Factory Lead Time 8 Weeks
