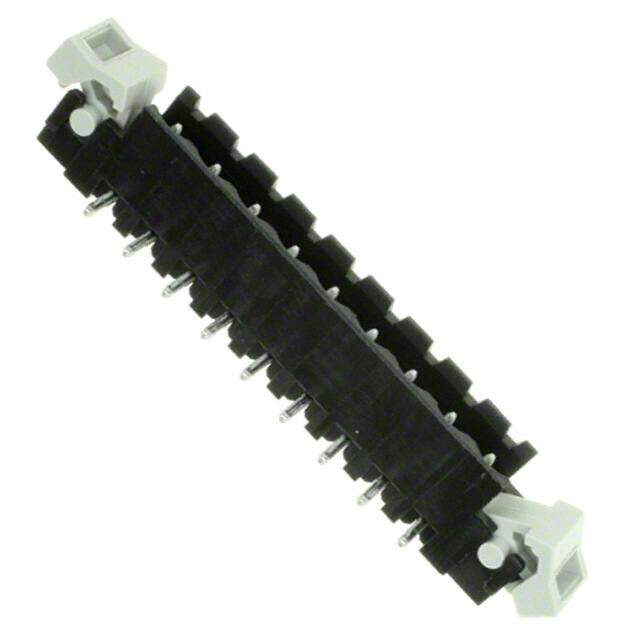

ELFH09210J
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 9POS 90DEG 5.08MM
PDF
/
Inventory: 6539
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Contact Mating Finish Tin-Lead
Current 15A
Number of Levels 1
Contact Tail Length 0.155 3.94mm
Voltage 300V
Insulation Resistance 100GOhm
Termination Style Solder
Current Rating 15A
Reach Compliance Code unknown
Insulation Height 0.319 8.10mm
Pitch 0.200 5.08mm
Voltage - Rated 300V
Color Black
Number of Positions 9
Type Header, Male Pins, Shrouded (4 Side)
Part Status Active
Feature Ejectors
Series ELFH
Published 2012
Packaging Bulk
Operating Temperature 105°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
